YBX3系列防爆電機規格型號參數表
電壓：380V		頻率：50Hz
電機型號	額定功率 (kW)	額定電流（A）	額定轉速（r/min）	效率% (η%)	功率因數 (cosφ)	額定轉矩 N.m	堵轉轉矩額定轉矩 Tst TN	堵轉電流額定電流 Ist TN	*大轉矩額定轉矩 Tmax TN	噪聲 db(A)	重量
同步轉速3000r/min
YBX3-80M1-2	0.75	1.7	2875	80.7	0.83	2.5	2.3	6.8	2.3	67	32
YBX3-80M2-2	1.1	2.4	2875	82.7	0.83	3.7	2.3	7.3	2.3	67	33
YBX3-90S-2	1.5	3.2	2890	84.2	0.84	5.0	2.3	7.6	2.3	72	39
YBX3-90L-2	2.2	4.6	2890	85.9	0.85	7.3	2.3	7.8	2.3	72	46
YBX3-100L-2	3	6.0	2891	87.1	0.87	9.9	2.3	8.1	2.3	76	57
YBX3-112M-2	4	7.8	2914	88.1	0.88	13.1	2.3	8.3	2.3	77	68
YBX3-132S1-2	5.5	10.6	2937	89.2	0.88	17.9	2.2	8.0	2.3	80	87
YBX3-132S2-2	7.5	14.2	2940	90.1	0.89	24.4	2.2	7.8	2.3	80	93
YBX3-160M1-2	11	20.6	2930	91.2	0.89	35.9	2.2	7.9	2.3	86	136
YBX3-160M2-2	15	27.9	2930	91.9	0.89	48.9	2.2	8.0	2.3	86	144
YBX3-160L-2	18.5	34.4	2937	92.4	0.89	60.2	2.2	8.1	2.3	86	155
YBX3-180M-2	22	40.5	2940	92.7	0.89	71.5	2.2	8.2	2.3	89	241
YBX3-200L1-2	30	54.9	2950	93.3	0.89	97.1	2.2	7.5	2.3	92	275
YBX3-200L2-2	37	67.4	2950	93.7	0.89	119.8	2.2	7.5	2.3	92	300
YBX3-225M-2	45	81.7	2960	94.0	0.89	145.2	2.2	7.6	2.3	92	420
YBX3-250M-2	55	99.6	2965	94.3	0.89	177.2	2.2	7.6	2.3	93	477
YBX3-280S-2	75	135.2	2970	94.7	0.89	241.2	2.0	6.9	2.3	94	640
YBX3-280M-2	90	161.7	2970	95.0	0.89	289.4	2.0	7.0	2.3	94	697
YBX3-315S-2	110	195.1	2975	95.2	0.90	353.1	2.0	7.1	2.2	96	1060
YBX3-315M-2	132	233.6	2975	95.4	0.90	423.7	2.0	7.1	2.2	96	1120
YBX3-315L1-2	160	279.4	2975	95.6	0.91	513.6	2.0	7.1	2.2	99	1290
YBX3-315L2-2	200	348.6	2975	95.8	0.91	642.0	2.0	7.1	2.2	99	1430
YBX3-355M-2	250	435.7	2980	95.8	0.91	801.2	2.0	7.1	2.2	103	1749
YBX3-355L-2	315	549.0	2980	95.8	0.91	1009.5	2.0	7.1	2.2	103	2060
同步轉速1500r/min
YBX3-80M1-4	0.55	1.4	1400	80.7	0.75	3.8	2.3	6.3	2.3	58	31
YBX3-80M2-4	0.75	1.8	1400	82.5	0.75	5.1	2.3	6.5	2.3	58	32
YBX3-90S-4	1.1	2.6	1440	84.1	0.75	7.3	2.3	6.6	2.3	61	43
YBX3-90L-4	1.5	3.6	1445	85.3	0.75	9.9	2.3	6.9	2.3	61	47
YBX3-100L1-4	2.2	4.8	1440	86.7	0.81	14.6	2.3	7.5	2.3	64	56
YBX3-100L2-4	3	6.3	1440	87.7	0.82	19.9	2.3	7.6	2.3	64	62
YBX3-112M-4	4	8.4	1445	88.6	0.82	26.4	2.3	7.7	2.3	65	74
YBX3-132S-4	5.5	11.4	1455	89.6	0.82	36.1	2.0	7.5	2.3	71	93
YBX3-132M-4	7.5	15.2	1455	90.4	0.83	49.2	2.0	7.4	2.3	71	105
YBX3-160M-4	11	21.5	1460	91.4	0.85	72.0	2.2	7.5	2.3	75	141
YBX3-160L-4	15	28.8	1460	92.1	0.86	98.1	2.2	7.5	2.3	75	153
YBX3-180M-4	18.5	35.3	1470	92.6	0.86	120.2	2.2	7.7	2.3	76	235
YBX3-180L-4	22	41.8	1470	93.0	0.86	142.9	2.2	7.8	2.3	76	255
YBX3-200L-4	30	56.6	1470	93.6	0.86	194.9	2.2	7.2	2.3	79	285
YBX3-225S-4	37	69.6	1480	93.9	0.86	238.8	2.2	7.3	2.3	81	360
YBX3-225M-4	45	84.4	1480	94.2	0.86	290.4	2.2	7.4	2.3	81	390
YBX3-250M-4	55	102.7	1480	94.6	0.86	354.9	2.2	7.4	2.3	83	490
YBX3-280S-4	75	136.3	1480	95.0	0.88	484.0	2.2	6.7	2.3	86	718
YBX3-280M-4	90	163.2	1480	95.2	0.88	580.7	2.2	6.9	2.3	86	816
YBX3-315S-4	110	199.1	1485	95.4	0.88	707.4	2.2	6.9	2.2	93	1050
YBX3-315M-4	132	238.4	1485	95.6	0.88	848.9	2.2	6.9	2.2	93	1210
YBX3-315L1-4	160	285.1	1485	95.8	0.89	1029.0	2.2	6.9	2.2	97	1290
YBX3-315L2-4	200	355.7	1485	96.0	0.89	1286.2	2.2	6.9	2.2	97	1400
YBX3-355M-4	250	439.6	1490	96.0	0.90	1602.3	2.2	6.9	2.2	101	1805
YBX3-355L-4	315	553.9	1490	96.0	0.90	2019.0	2.2	6.9	2.2	101	2130
同步轉速1000r/min
YBX3-90S-6	0.75	2.0	934	78.9	0.72	7.7	2.1	5.8	2.0	57	42
YBX3-90L-6	1.1	2.8	945	81.0	0.73	11.1	2.1	5.9	2.0	57	44
YBX3-100L-6	1.5	3.7	945	82.5	0.74	15.2	2.1	6.0	2.0	61	49
YBX3-112M-6	2.2	5.4	960	84.3	0.74	21.9	2.1	6.0	2.0	65	69
YBX3-132S-6	3	7.2	964	85.6	0.74	29.7	2.0	6.2	2.0	69	83
YBX3-132M1-6	4	9.5	965	86.8	0.74	39.6	2.0	6.8	2.0	69	91
YBX3-132M2-6	5.5	12.7	965	88.0	0.75	54.4	2.0	7.1	2.0	69	99
YBX3-160M-6	7.5	16.4	970	89.1	0.78	73.8	2.1	6.7	2.0	73	133
YBX3-160L-6	11	23.4	970	90.3	0.79	108.3	2.1	6.9	2.0	73	154
YBX3-180L-6	15	30.9	975	91.2	0.81	146.9	2.0	7.2	2.0	73	239
YBX3-200L1-6	18.5	37.8	980	91.7	0.81	180.3	2.1	7.2	2.0	76	240
YBX3-200L2-6	22	44.2	980	92.2	0.82	214.4	2.1	7.3	2.0	76	280
YBX3-225M-6	30	60.7	980	92.9	0.81	292.3	2.0	7.1	2.0	76	360
YBX3-250M-6	37	71.7	980	93.3	0.84	360.6	2.1	7.1	2.0	78	470
YBX3-280S-6	45	84.8	980	93.7	0.86	438.5	2.1	7.2	2.0	80	655
YBX3-280M-6	55	103.3	980	94.1	0.86	536.0	2.1	7.2	2.0	80	725
YBX3-315S-6	75	141.7	985	94.6	0.85	727.2	2.0	6.7	2.0	85	930
YBX3-315M-6	90	171.5	985	94.9	0.84	872.6	2.0	6.7	2.0	85	1060
YBX3-315L1-6	110	206.8	985	95.1	0.85	1066.5	2.0	6.7	2.0	85	1130
YBX3-315L2-6	132	244.5	985	95.4	0.86	1279.8	2.0	6.7	2.0	85	1215
YBX3-355S-6	160	292.3	990	95.6	0.87	1543.4	2.0	6.7	2.0	92	1940
YBX3-355M2-6	200	364.6	990	95.8	0.87	1929.3	2.0	6.7	2.0	92	2070
YBX3-355L-6	250	455.7	990	95.8	0.87	2411.6	2.0	6.7	2.0	92	2340

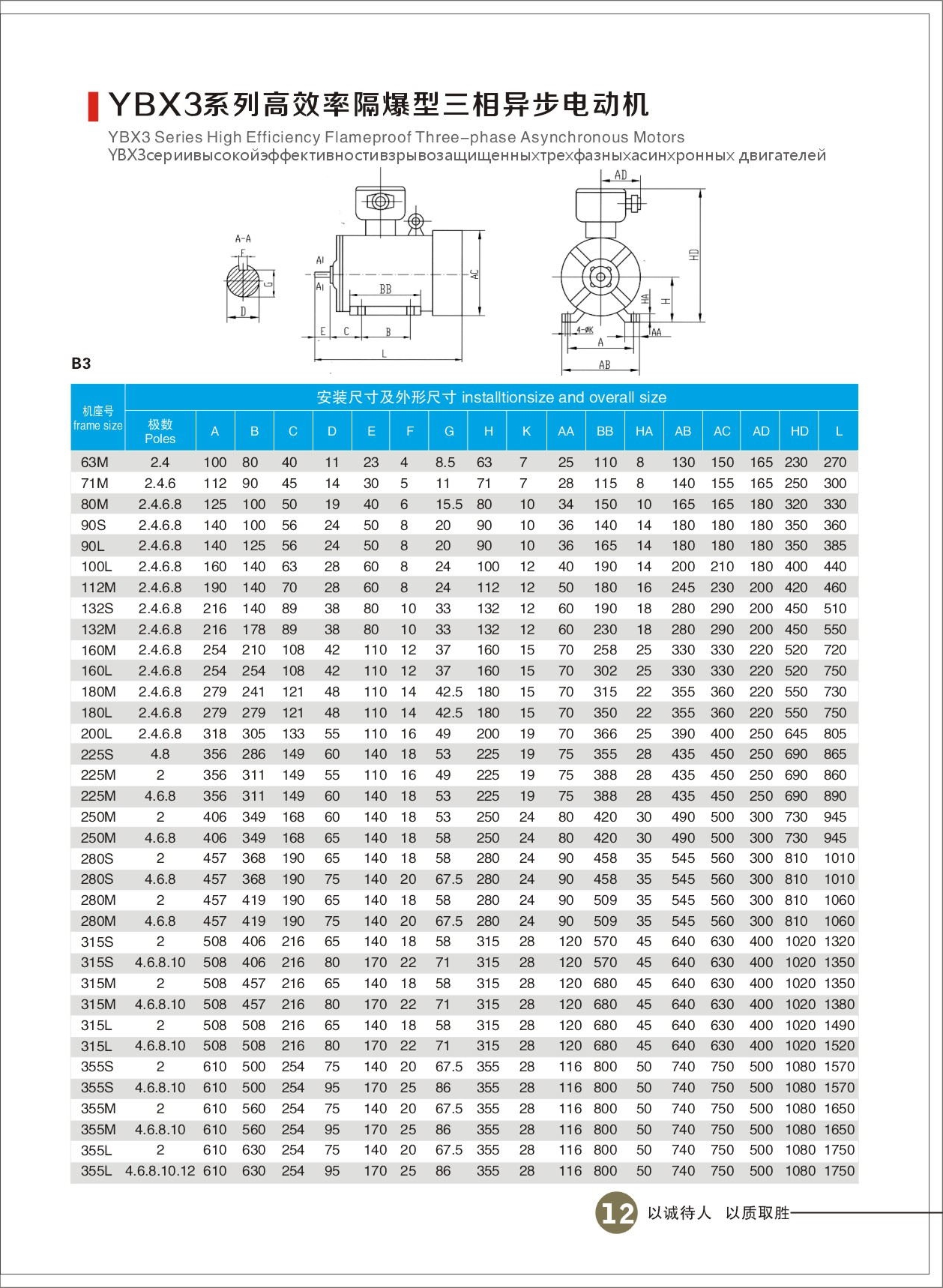

YBX3防爆電機規格型號安裝尺寸表

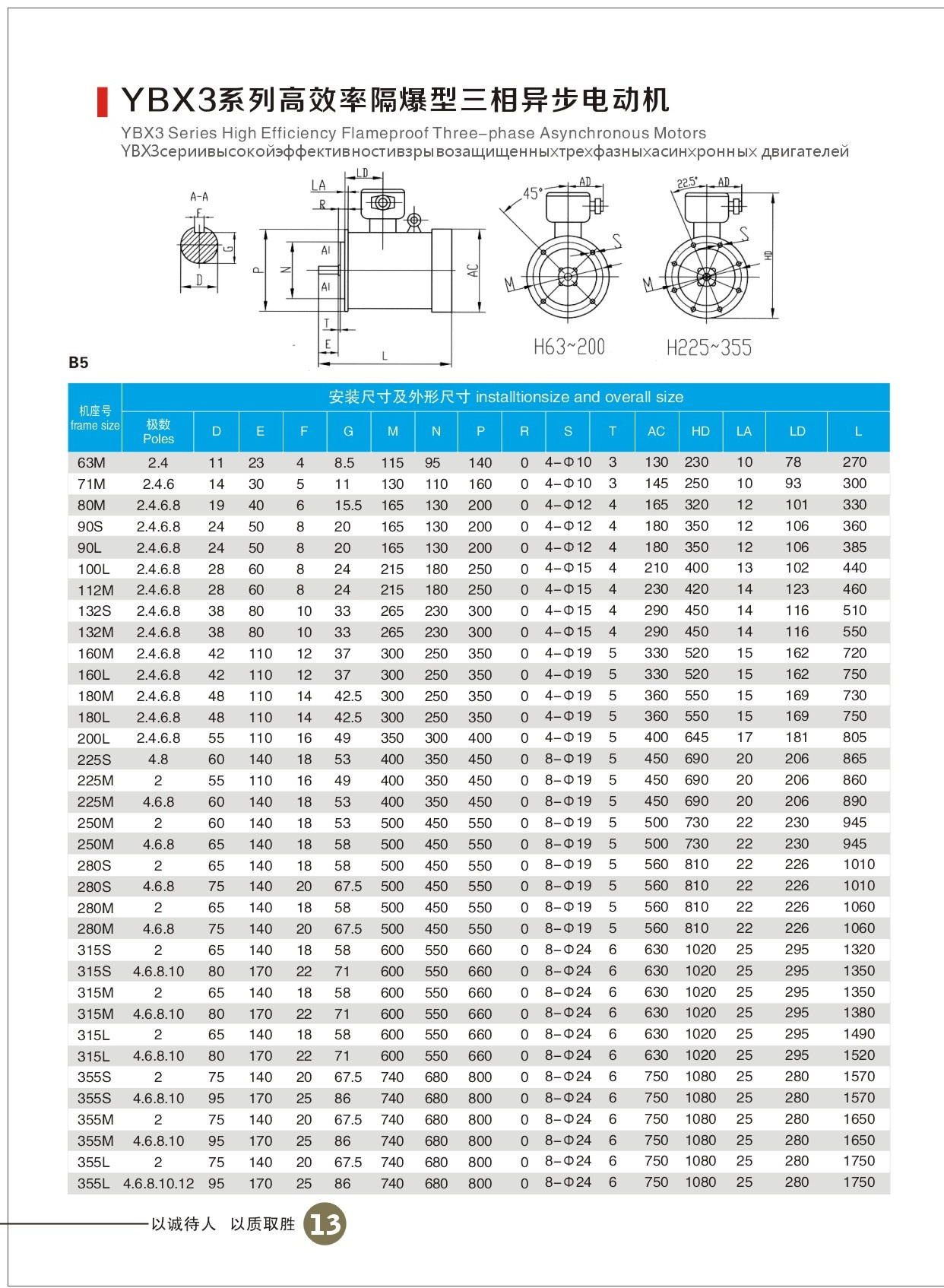

YBX3防爆電機規格安裝尺寸圖

防爆電機型號規格尺寸圖
